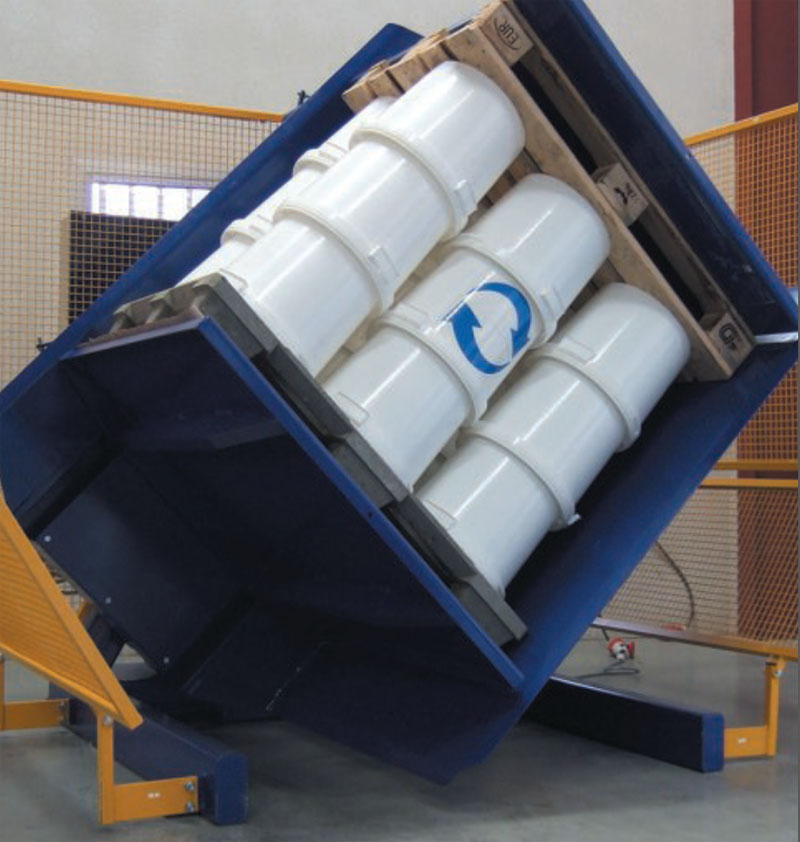

DD 1.25 Pallet Inverter

Mouse over the image for close up

Click image to enlarge

  • Product Code: DD 1.25
  • Manufacturer: Premier
  • Availability: Special Order
Product Info

DD 1.25 Pallet Inverter

Lightweight (1500kg) - easy to transport.
Twin chain-linked clamping tables opening to within 110mm off floor level.
Can be loaded by forklift truck, stacker, or at ground level by pallet truck via a 1.5m long ramp.
Compact size.
Perfect for working in confined areas or difficult to access locations.
Simple push button controls with option of semi or fully automatic controls.
Various guarding options.
Best suited to lightweight (1250kg maximum), low volume applications.

how dd 1.25 works

More about the DD 1.25 Pallet Inverter

The DD 1.25 pallet inverter has an opening range which allows it to invert loads from 900 to 1900mm in height and up to 1250kgs in weight. The table of the DD 1.25 pallet inverter opens close enough to the floor to permit ramp loading if required. It is invariably supplied with attached guards and always has extended push button controls.

Fork tunnels in the base enable it to be relocated easily from one part of your warehouse to another. The DD 1.25 pallet inverter has a smart well-enclosed appearance which keeps it looking clean and presentable in food and pharmaceutical locations. It is mostly used for transferring goods to and from clean pallets. The DD 1.25 pallet invert's compact dimensions and low overall weight make it ideal for small warehouses or situations where space is limited.

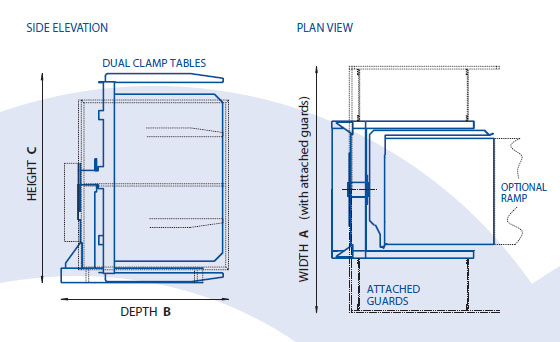

technical graphic dd 1.25




DD 1.25 SPECIFICATIONS
Usable jaw opening maximum 1.90m

minimum 0.90m

Load tables 1.16m wide x 1.18m deep

Can be supplied with 1.50m long loading ramp for floor level access.

Loading capacity 1250 kgs.

Power supply 3ph / 400v/ 15 amp
Motor size 2.2kW

Weight 1500 kgs
Weight of guards 175 kgs

Controls: Extended individual push button controls with semi or fully auto- sequenced systems available as an option.

Operating space: 2.70m wide x 1.78m deep x 2.30m high inc. attached guards

Depth increases to 3.00m when fitted with floor-fixed guards and multi photo-beams.

Standard shipping dimensions: 2.70m wide x 1.78m deep x 2.00m high with guards fitted.
