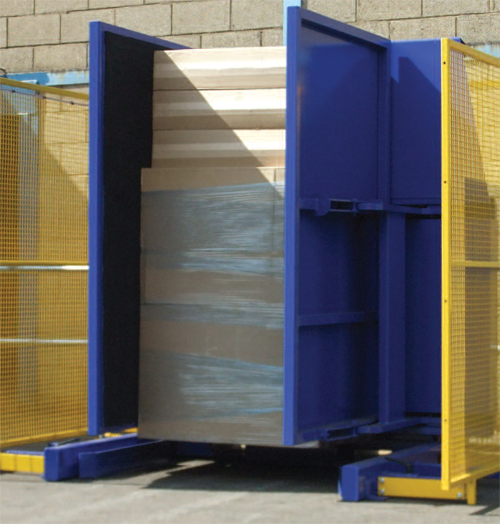

Clamp Changer

The Premier Clamp Changer has been developed in response to customer requests for a pallet changing method that does not require tipping or inverting of the load. It has twin, soft rubber faced clamp plates that gently grip the product. The clamping pressure on the load is adjustable, and can be increased to the point where the machine will hold a load weighing up to 1000kgs.

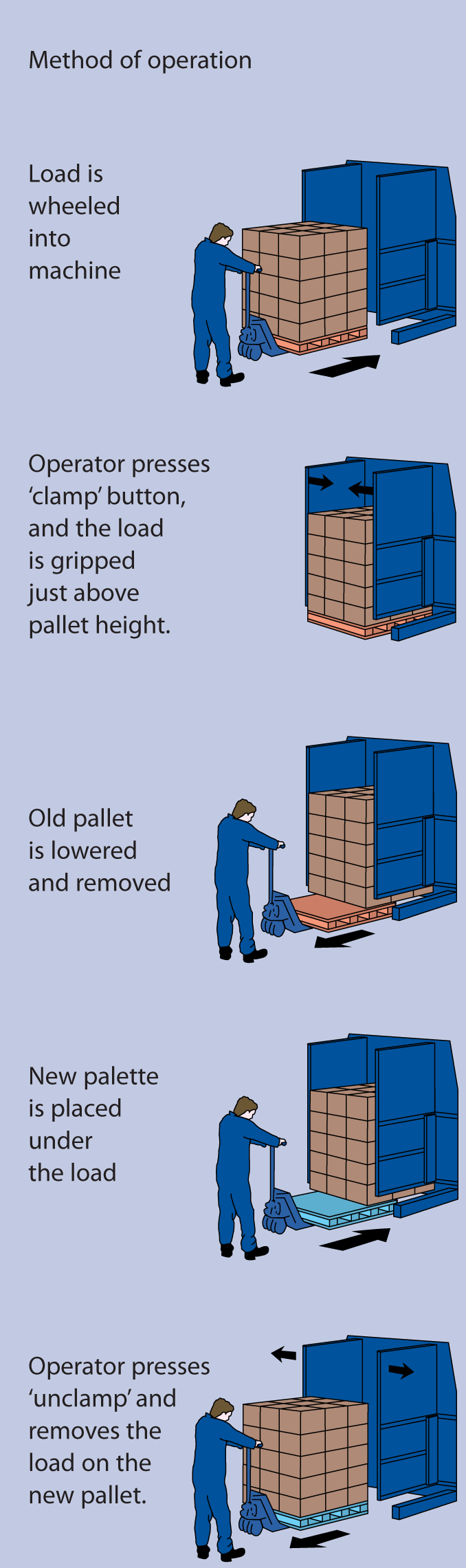

how v changer works

USES INCLUDE

USES INCLUDE:

  • Fast pallet to pallet transfer of block-stacked goods such as cardboard boxes or plastic crates
  • Transfer of loads that cannot be tipped or inverted

    • KEY FEATURES


  • Load by pallet truck
  • Twin, chain-connected clamp tables with soft rubber lining
  • Adjustable pressure to enable load of up to 1000kgs to be clamped
  • Side guarding



    • Clamp Changer Specifications
    Sidewalls 1200mm deep
    Sidewalls Opening Range 700mm x 1300mm
    Maximum Load Height No Restriction
    Loading Capacity 1000 kgs
    Power Supply 3 phase / 400V / 16 amp
    Motor Size 2.2kW
    Controls 24V (Hold to run push button)
    Actual
    Operating
    Space    		 A. Width 2590mm
    B. Depth 1895mm
    C. Height 2195mm
    Standard Shipping Dimensions (machine only)
    		 Width 2590mm Depth 1895mm Height 2195mm
